Practcal Stereotomy Stage 1
These models were made following the first stage of online courses at the Professional School of Practical Stereotomy.

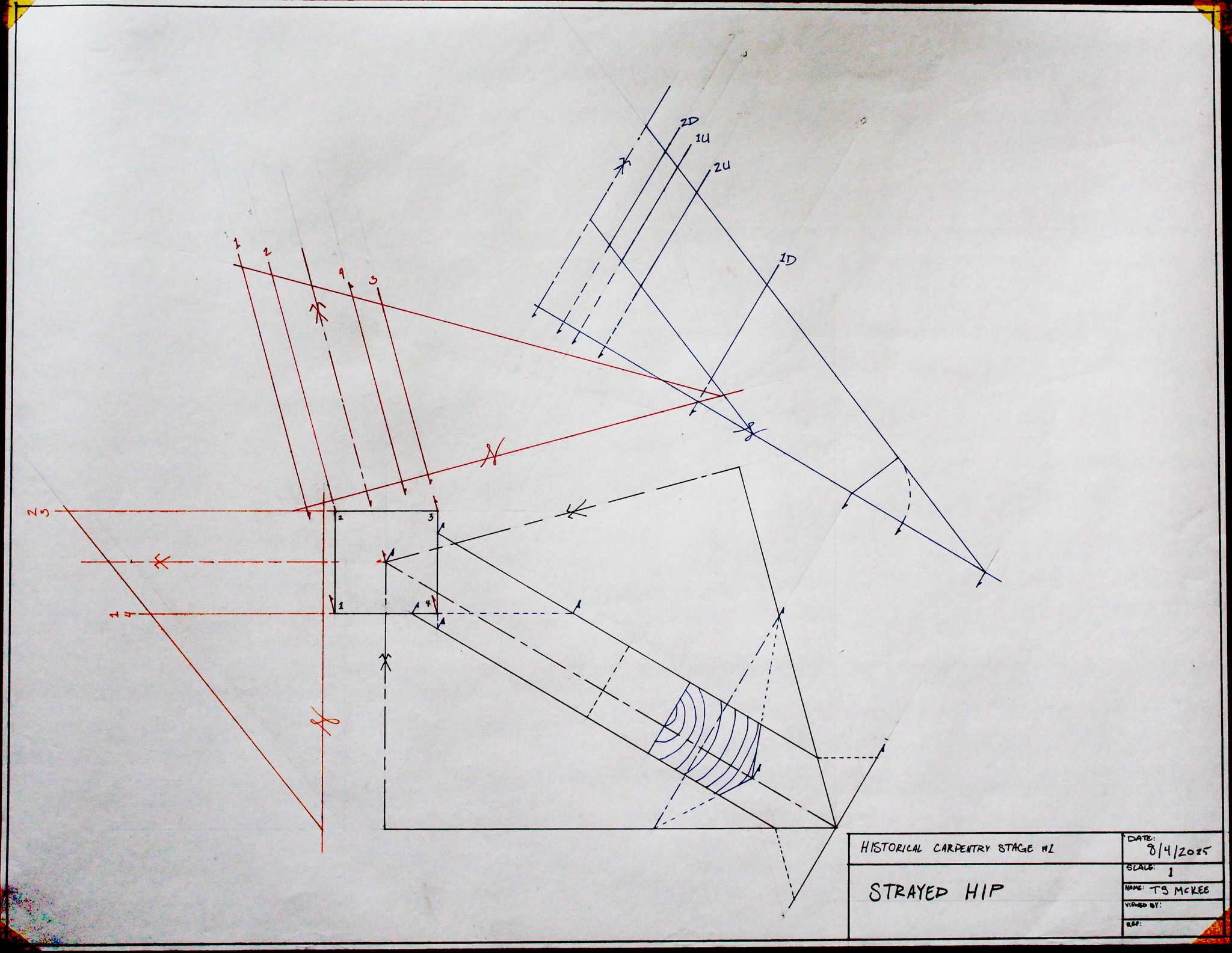

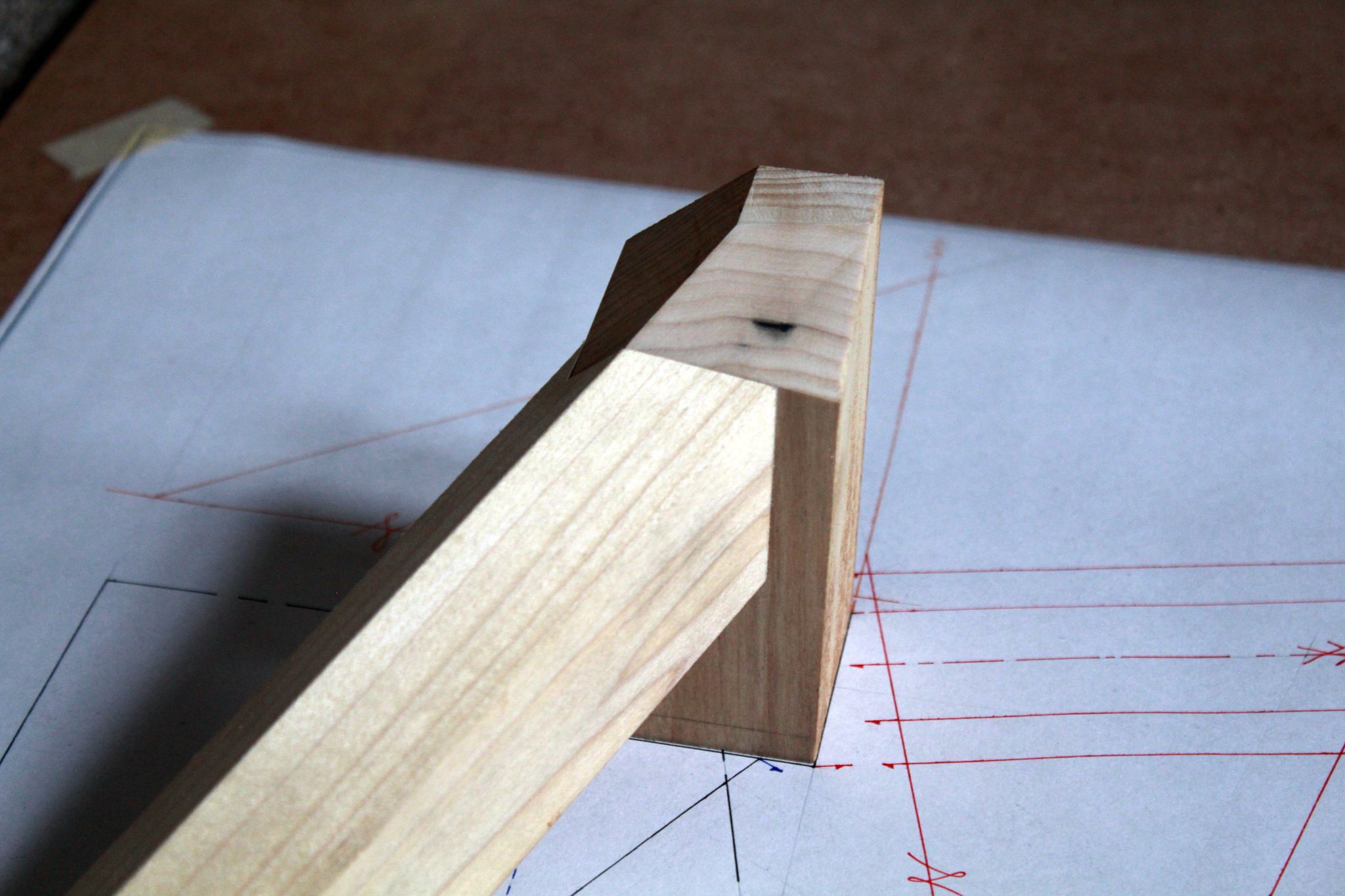

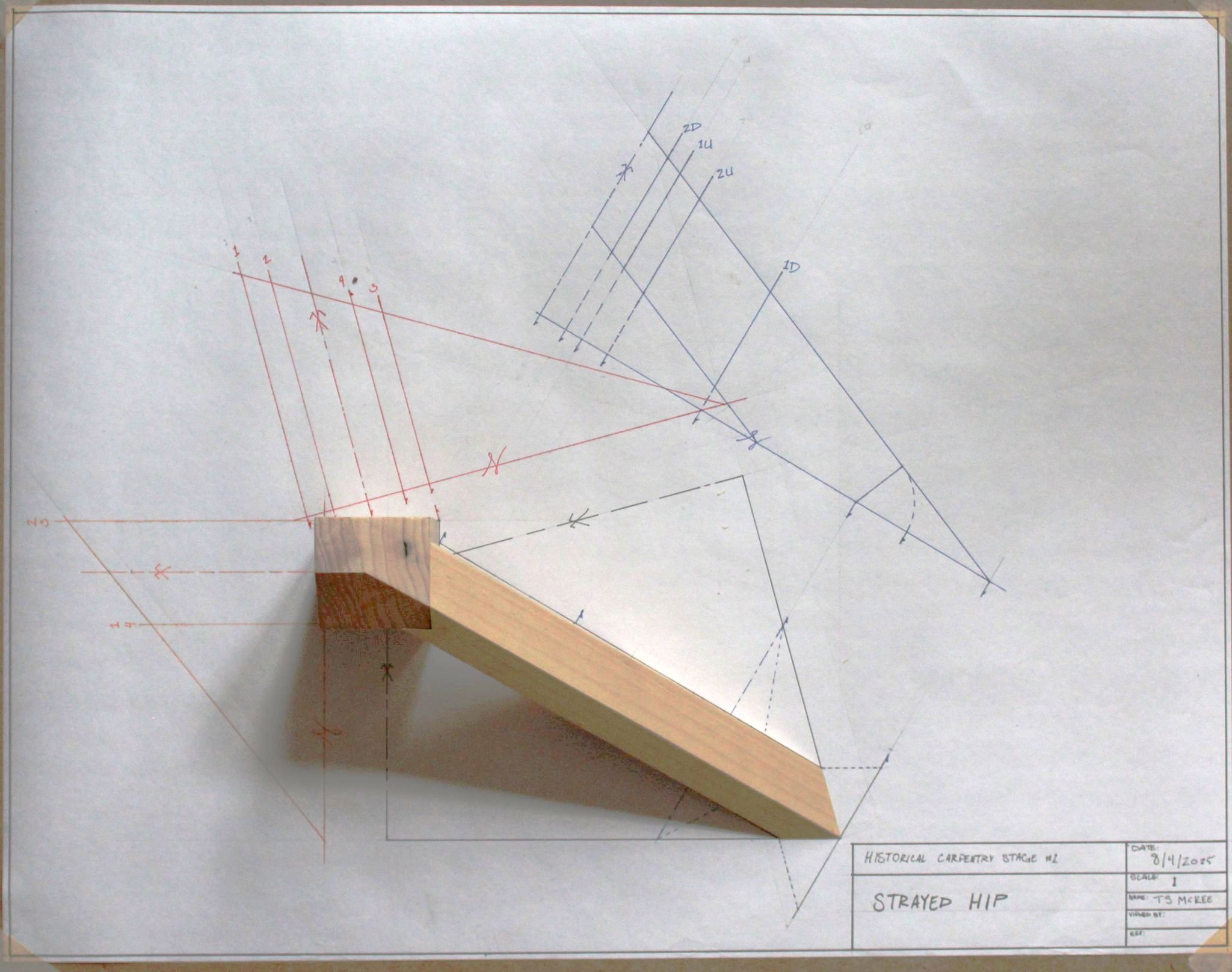

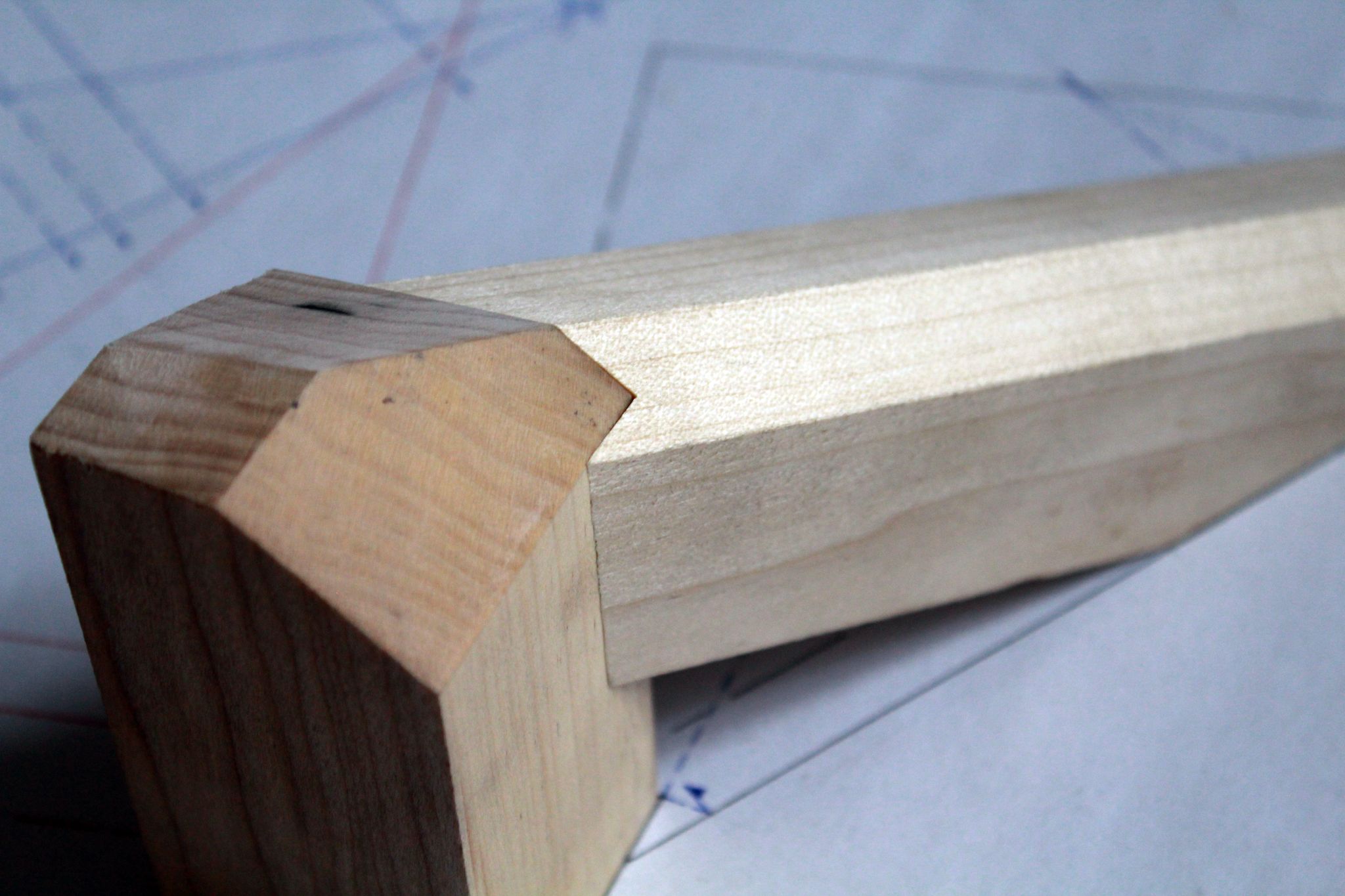

Strayed Hip
The backing angles on this two pitched hip rafter are offset to create equal height fascia.

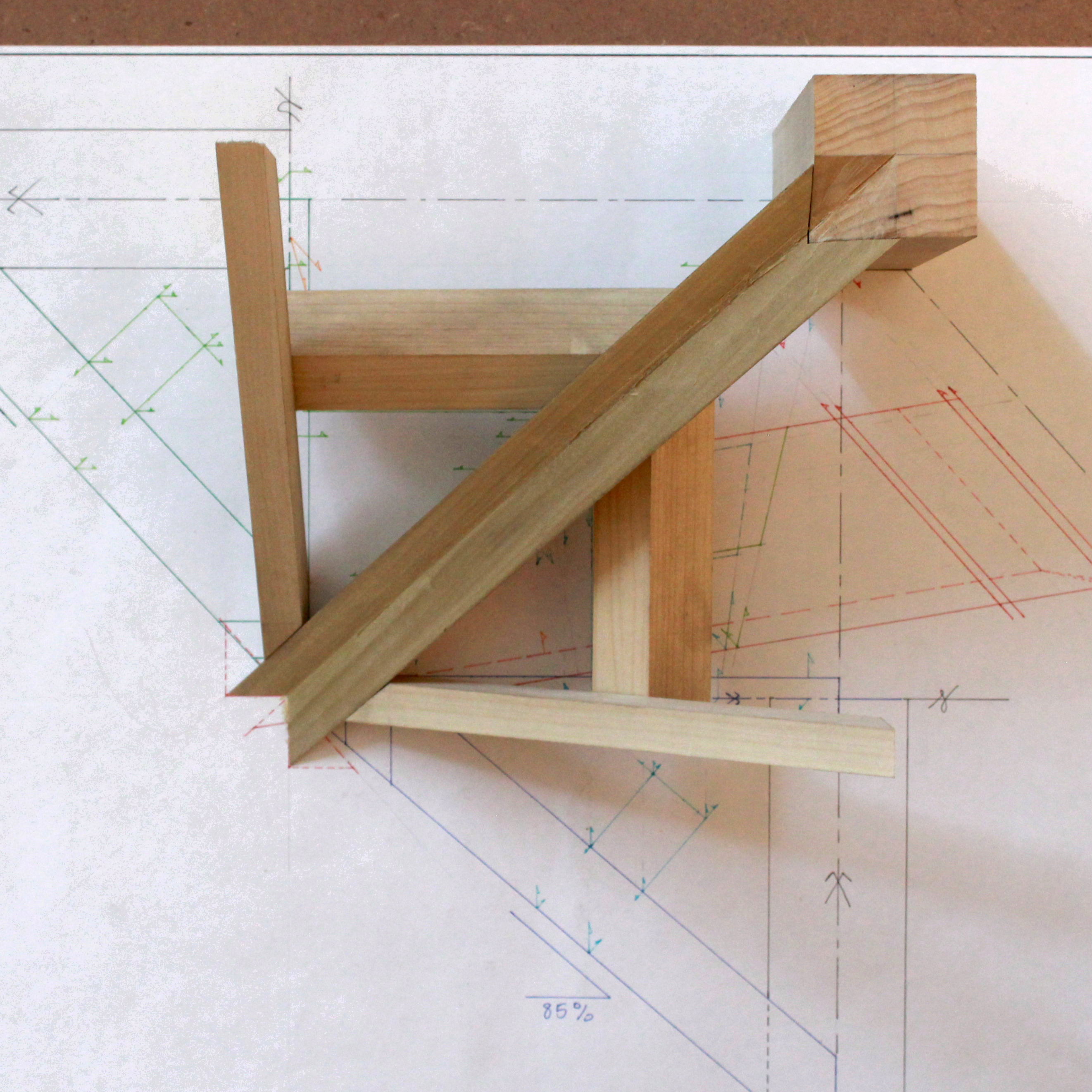

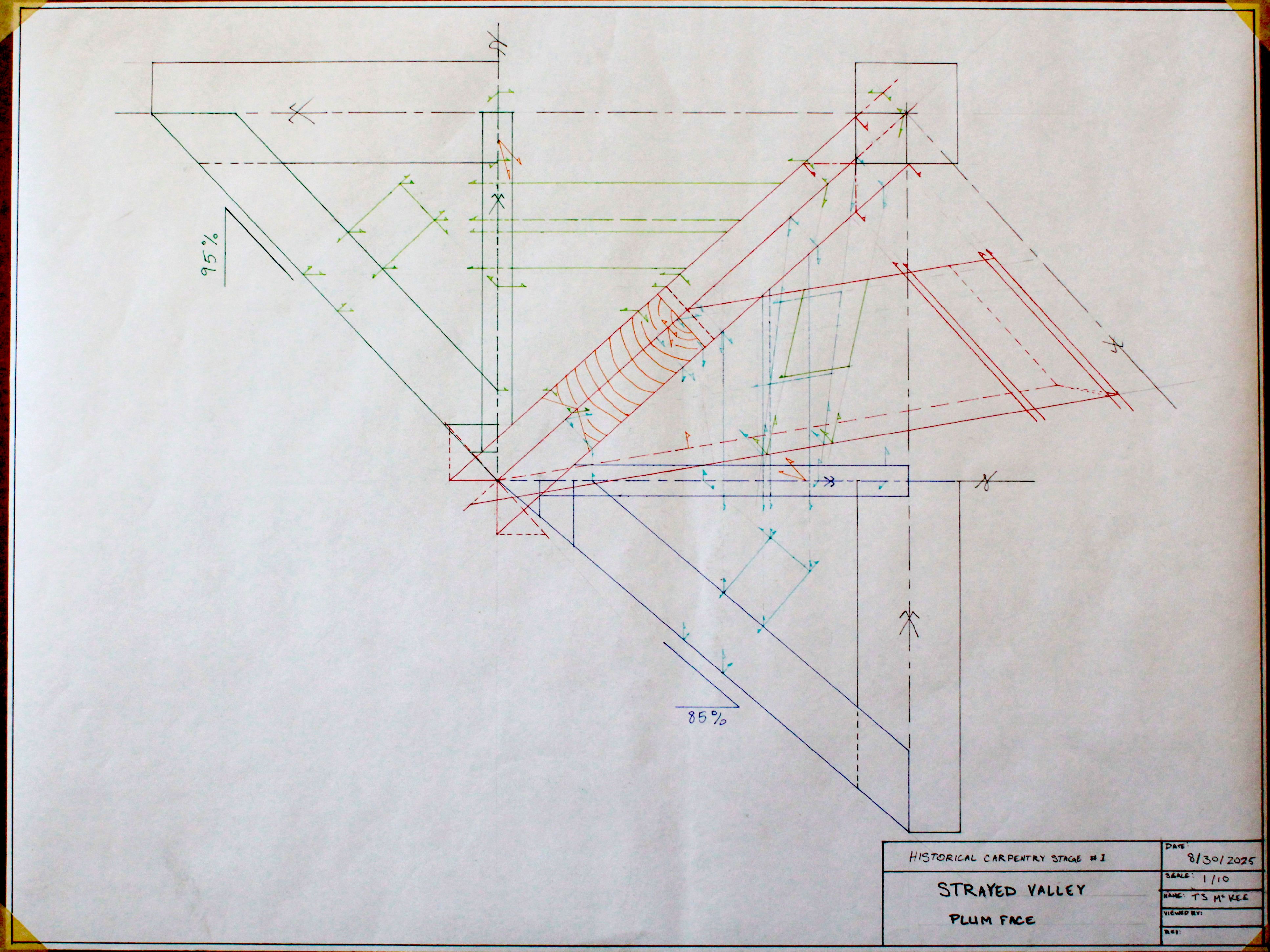

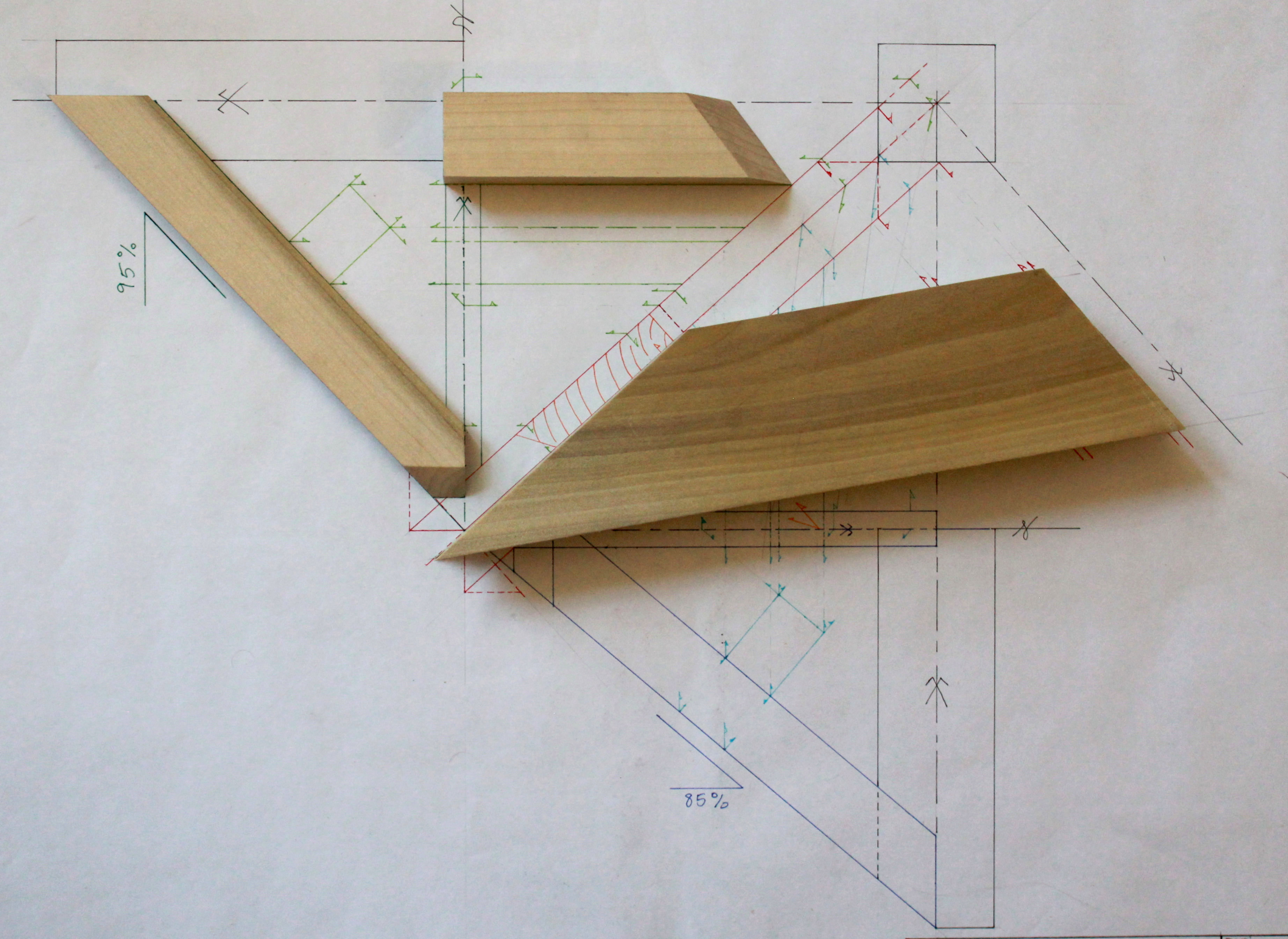

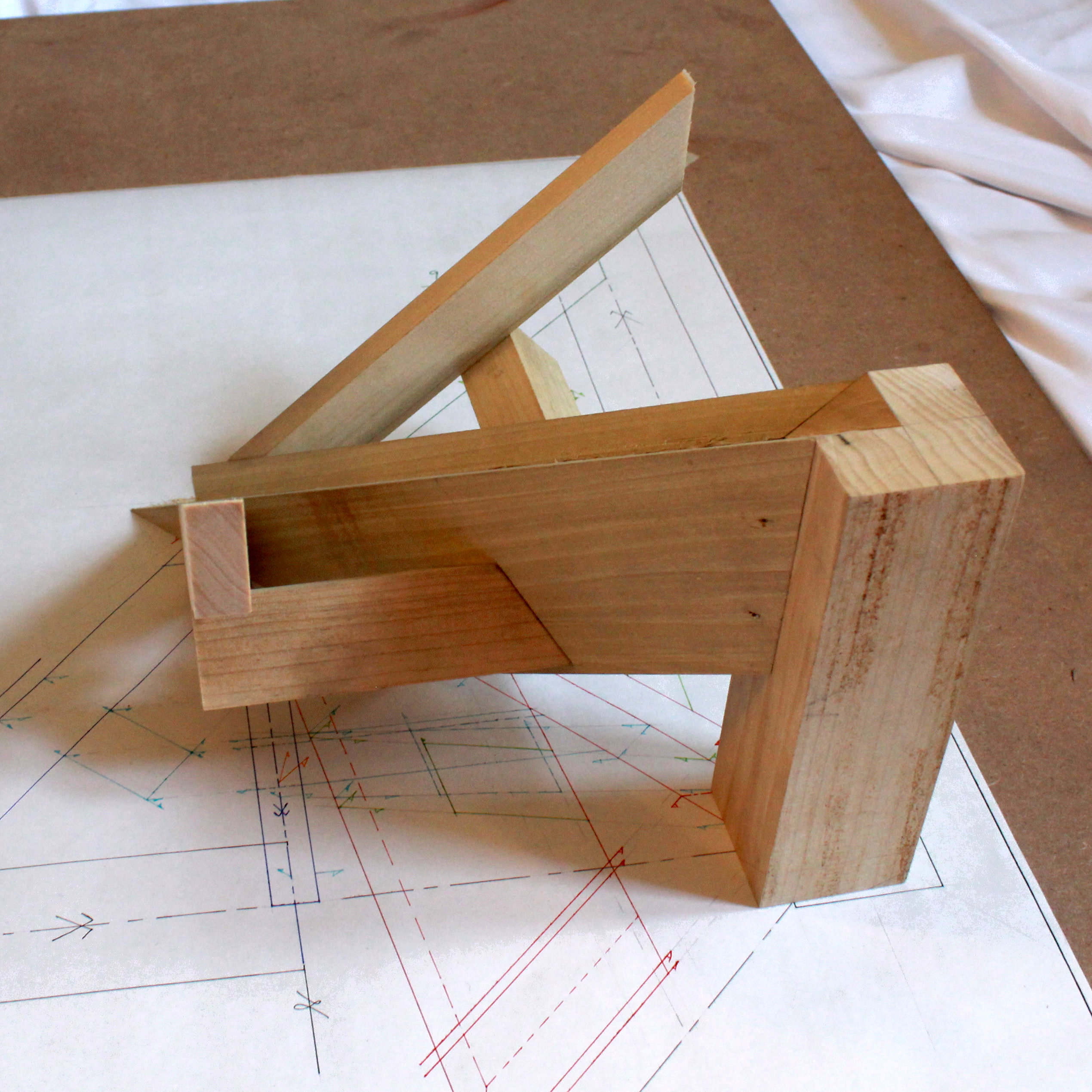

Strayed Valley
This strayed valley follows the same principles with the addition of rafters and purlins.
